Unity Setup and Management Basics

1. Unity streamlines creating wide area interoperability systems and it is built-in on systems like the RSP-Z2, STR-Z3, and Z-Series Controller.
2. In a Unity system, the Z-Series Controller is the management device. The RSP-Z2 and the STR-Z3 are distributed devices.

3. When adding a distributed device to the management device:

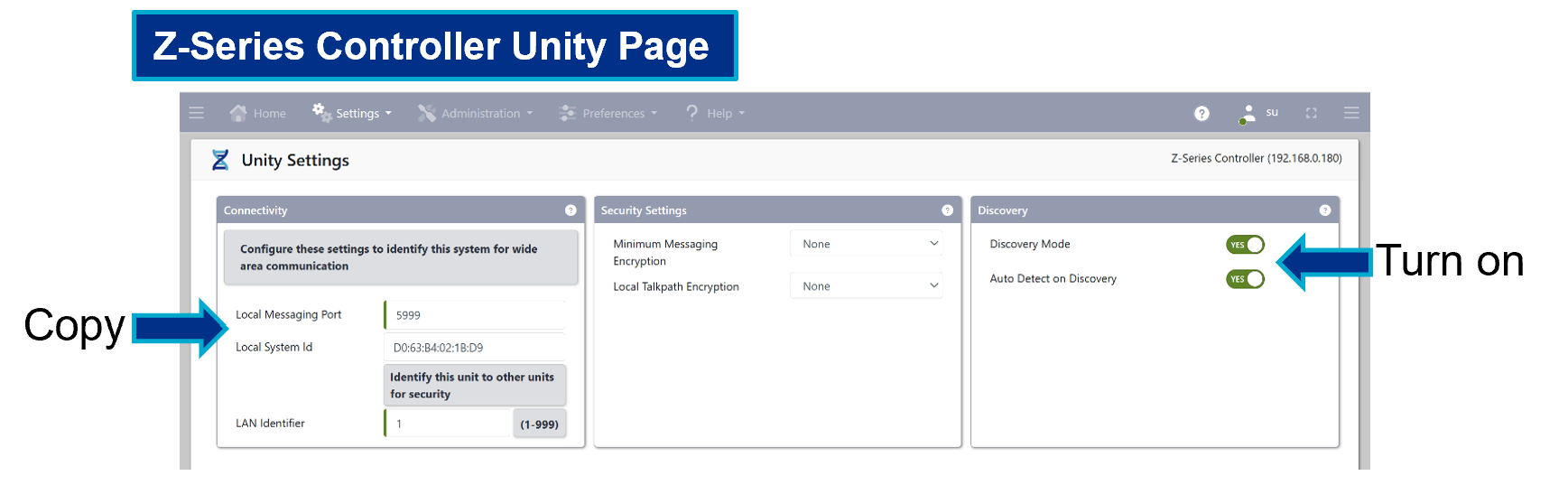

   1. Obtain the IP Address, Messaging Port, and Local System Id of the management device. (Z-Series Controller)
   2. Turn on Discovery Mode and Auto Detect on Discovery. (Z-Series Controller Unity page)

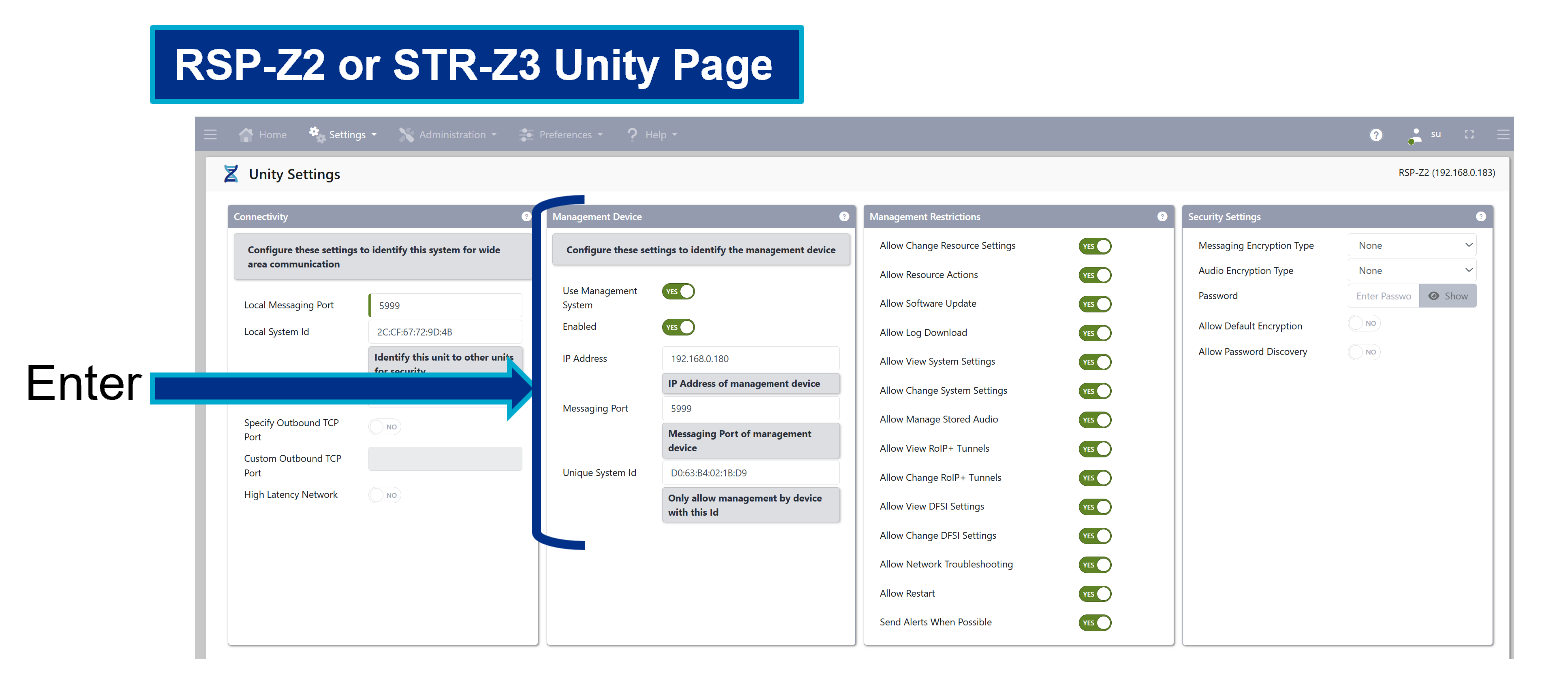

4. On the distributed device (RSP-Z2 or STR-Z3), in the Management Device group of settings: Enable Use Management System, enter the Z-Series Controller’s IP Address, Messaging Port, and Unique System Id. Then click Save. (RSP-Z2, STR-Z3, distributed system’s Unity page)



5. The systems should connect. Resources should be visible on the Z-Series Controller.
6. When all distributed systems have been added, turn off Discovery Mode and Auto Detect on Discovery. (Z-Series Controller Unity page)
7. Use all resources from the Z-Series Controller’s Home page.
8. Access distributed system settings from the Z-Series Controller’s Distributed Systems page.

For more details, please see our complete Z-Series Guide to Unity.
